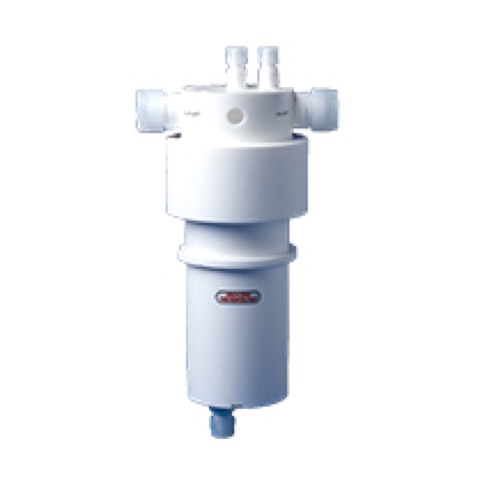

LTFH High Temperature Filter Housing

Reusable Filter Housing for High Temperature Chemicals

Reusable high temperature filter housing made of heavy wall PTFE for the most demanding applications

  • FEATURES
    • Reduced cost of ownership: The housing design eliminates the need to replace the filter housing when the cartridge is replaced.
    • Spin-on ring assembly not only ensures a positive seal every time, but it also enables quick and easy cartridge replacement with no damage to the housing o-ring. Housing collar retainer ring and filter cartridge clip substantially reduce cartridge maintenance clearance space.
    • Reduced downtime: Fast filter cartridge change-outs without the need for removing the fluid connections.
    • 100% PTFE fluoropolymer wetted surfaces are compatible with virtually all chemistries.
  • SPECIFICATIONS
    • Temperature Range: Up to 180º C (356° F) continuous at 2.75 bar (40 PSI).
    • 100% heavy wall PTFE fluoropolymer wetted surfaces
    • End cap mounting holes
    • Filter body slides on and locks into position by means of a spin-on ring assembly (spanner wrench included)
    • Able to be mounted upright or inverted (mounting bracket available)
    • Housing sizes available for (cartridge not provided):
    • 70mm, 10-inch, 222 o-ring SOE filter cartridge
    • 83mm, 10-inch, 222 o-ring SOE filter cartridge
    • 70mm, 20-inch, 222 o-ring SOE filter cartridge
    • Fluid connections:
    • 1/2-inch (12mm) to 1-inch (25mm) Flaretek® or Super 300 Type Pillar® process connections

• 1/8-inch (3mm) to 1/2-inch (12mm) Flaretek® or Super 300 Type Pillar® drain/vent connections
