Overview

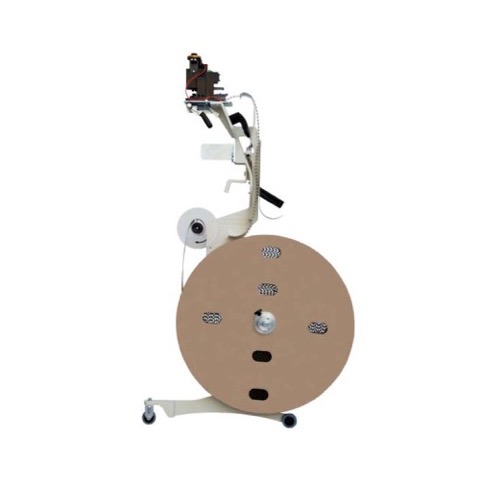

The ToolingShuttle 61 combines the crimp applicator (tooling), terminal reel and paper winder into one mobile quick-change unit for CrimpCenter 6-series fully automatic crimping machines. The ToolingShuttle 61 allows the operator to exchange all three elements simultaneously which significantly reduces changeover time.
- Change over in less than 30 seconds
- For most standard crimp applicators (tooling)
- Retrofittable for all CrimpCenter 6-series models
- Simple and quick handling without additional tools
- Modular concept: expand system according to your requirements
Application Range
The ToolingShuttle 61 can be prepared for the next job at an external workstation while the machine is producing thereby minimizing machine downtime. Once in position the applicator is quickly moved from the ToolingShuttle and secured into the crimping station. A magnetic ram holder fixes the ram of the applicator in top position for easier insertion of the applicator into the press and to protect the applicator tooling when it is not in use. The ToolingShuttle 61 accepts all standard crimping tools (mini-style applicators), so existing applicators can be easily integrated.
Dimensions (L x W x H) : 545 x 230 x 1195mm (21.4 x 9.1 x 47.1”) (including terminal reel and crimp applicator*)
Weight :
Base frame: 7.5 kg (16.5 lbs.)
Fully equipped: 12 kg* (26.5 lbs.)
CE-Conformity : The ToolingShuttle 61 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Note : * Dimensions and weight may vary depending on type of crimp applicator, terminal reel and paper winder.
Options
- ShuttleRack: mobile storage racks for up to 5 ToolingShuttle 61 units
- Barcode identification of individual ToolingShuttle 61 units
Plug & Crimp™ Technology
Innovative Plug & Crimp technology lets operators exchange ToolingShuttles on CrimpCenter series machines in the shortest possible time – without any additional tools.
The ToolingShuttle 61 is equipped with 2 wheels and 2 handles for optimum maneuverability. When used together with the ShuttleRack the ToolingShuttle 61 can be effectively used to optimize set up time and maximize productivity of CrimpCenter machines.
