Overview

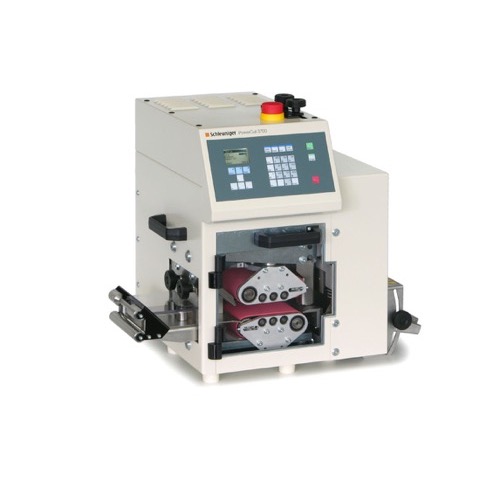

The PowerCut 3700 is the ideal solution for processing larger cable dimensions. It precisely cuts wire, round and flat cable, Glass Optical Fiber (GOF), tubing material, foil and more up to 70 mm² (AWG 2/0) and 25 mm (0.98 ") OD. This automatic cutting machine presents an excellent price/performance ratio.
- High production throughput
- Excellent accuracy & repeatability
- Heavy duty cutter head
- Flexible interfaces
- Outstanding price/performance ratio
Application Range
The PowerCut 3700 is the ideal cutting machine for round and flat material with larger cross sections and feeds the cable with high accuracy and speed. The powerful pneumatic cutter head achieves a clean right-angled cut and may be used for a wide range of applications. The PowerCut 3700 may be used as a stand-alone machine as well as in combination with various peripheral machines creating a fully automatic cable processing line.
Tubing O.D. : Up to 20 mm (0.79”)
Cable O.D. : 25 mm
Wire Size Range : 70 mm² (2/0 AWG)
Cable Width ;: 82 mm
Feed Rate : 14.76 ft/s

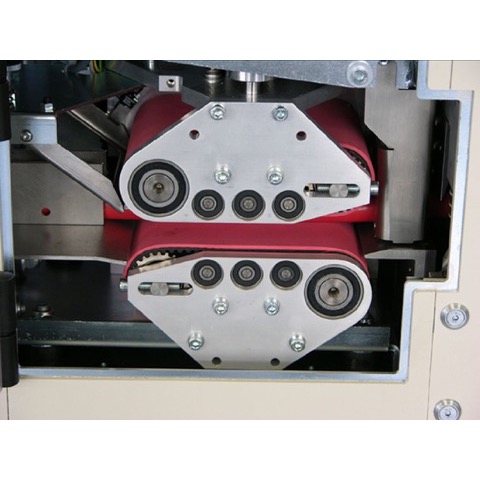

Feeding System : Belt feed
Programming : Panel
Dimensions (L x W x H) : 640 x 440 x 530 mm (25.19 x 17.32 x 20.86”)
Weight : 143.3 lbs.
CE–Conformity : The PowerCut 3700 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
