Overview

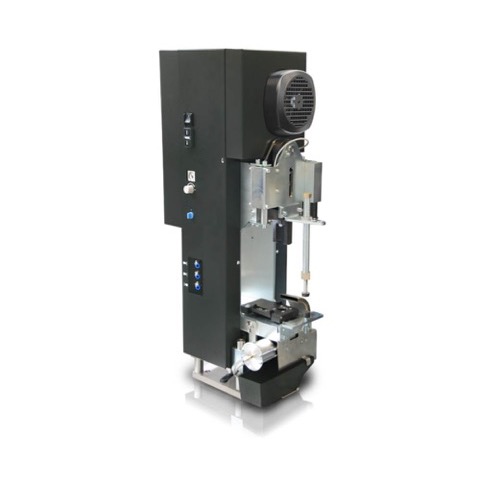

The UniCrimp 221 is a crimping station designed for high speed production on CrimpCenter series machines. The station includes integrated crimp force monitoring with the Schleuniger CFM 20 as well as a height adjustable base frame. It accepts most side- or rear-feed mini-style crimping applicators with either mechanical or pneumatic feed.
- Suited for precise high speed crimping
- Integrated crimp force monitoring
- Automatic crimp height adjustment
- Suitable for all standard crimp applicators
Application Range
The UniCrimp 221 is a crimping station designed for high speed production on CrimpCenter series machines. The station includes integrated crimp force monitoring with the Schleuniger CFM 20 as well as a height adjustable base frame. It accepts most side- or rear-feed mini-style crimping applicators with either mechanical or pneumatic feed. The speed and precision of the UniCrimp 221 makes it perfectly suited for fully automatic processing of wires up to 6 mm² (10 AWG). The press can be changed between 40 mm (1.58”) and 30 mm (1.18”) stroke for increased application range. The press allows for a wide range of shut heights from the standard applicators requiring 135.78 mm to applicators requiring a taller shut height of 190.00 mm. Furthermore, integrated LED lighting illuminates the work space for improved visibility.
Crimping Force : 20 kN (2.25 to)
Wire Size Range : Up to 6 mm² (10 AWG)
Cycle Time : Adjustable press speed
Stroke : 40 mm (1.58”) or 30 mm (1.18”) Can be changed mechanically
Shut Height : 135.78 mm (5.346”) to 190.00 mm (7.480”)
Crimp Height Adjustment : Manual: ± 0.8 mm (0.03”, adjustment range)
Dimensions (L x W x H) : 435 x 252 x 870 mm (17” x 10” x 34”) (lowest base frame point)
Weight : approx. 80 kg (176 lbs.) Incl. base frame
CE-Conformity : All CrimpCenter models fully comply with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
Important Note : Schleuniger recommends that wire samples be submitted in case where there is doubt as to the processing capabilities of a particular machine.
Options
- Carrier strip cutter
- Guide for rear-feed terminal carrier strip
- Accessory kit for pneumatic crimp applicators
- Split-cycle processing capability
- Various adapter kits for non-standard crimp applicators
- (including other shut heights)
- Applicator ram clamping unit
Maximize Your Productivity
For short applicator change-over times, the UniCrimp 221 features a quick-change applicator clamping plate. To further minimize machine downtime of your CrimpCenter we recommend the use of our Tooling Shuttle System (TS). With the ToolingShuttle 30 or the ToolingShuttle 61, the applicator, terminal reel and paper winder can be prepared for production offline while the CrimpCenter is running. The applicator and terminal reel are mounted on the ToolingShuttle and exchanged simultaneously thereby minimizing machine downtime significantly when frequently changing applicators.
