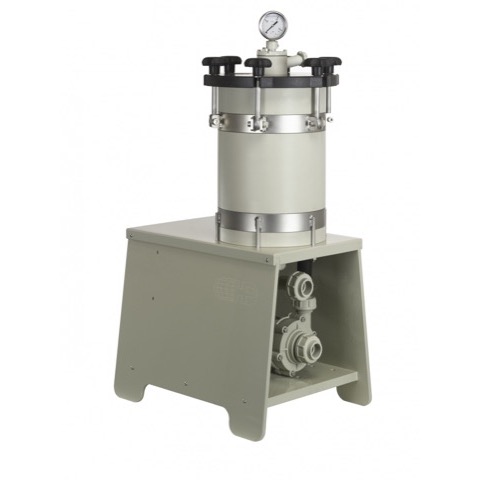

Series 7

Back

Series 7

5.000 - 18.000 l/h

Discs, cartridges



Typical applications

    Plating and process industry



Features

  •  Service friendly, ideal cleaning access height
  •  Magnetic drive pump
  •  Filter chamber with a welded bottom (no seal)
  •  Discs (thin/thick paper, cloth) or cartridges
  •  All PP or PVDF construction
  •  Max. temperature PP 80?C / PVDF 100?C
  •  Bottom-out or top-out model

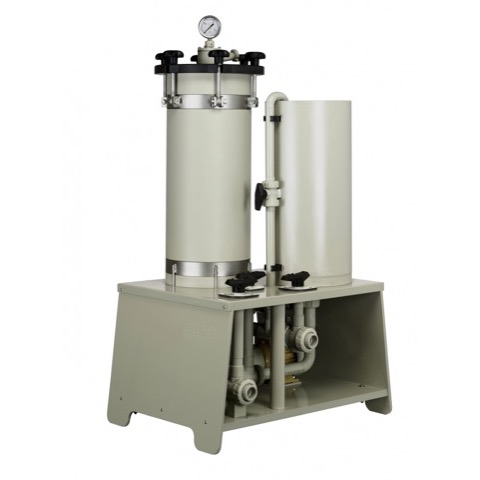

  •  Choice of a slurry tank for carbon treatment, mixing and priming
  •  Unions for rigid piping (PP, PVDF or CPVC sockets)
  •  Standard with 3 phase motor, thermal overload switch, lead without plug, pressure gauge, air release and drain valve



Options

  •  Hose connection
  •  Dry run protection
  •  Bypass with a flowmeter
  •  Contact manometer
  •  Single open end cartridges
  •  Slurry tank
  •  Sealpump
  •  PVDF and Viton
